NovaStar KU20

The KU20 is NovaStar's newest member of the COEX series. The LED controller is characterized by its small size and can therefore be easily installed in 19″ racks.

In conjunction with NovaStar's new VMP software (Vision Management Platform), the user is offered simple operation with extensive functions.

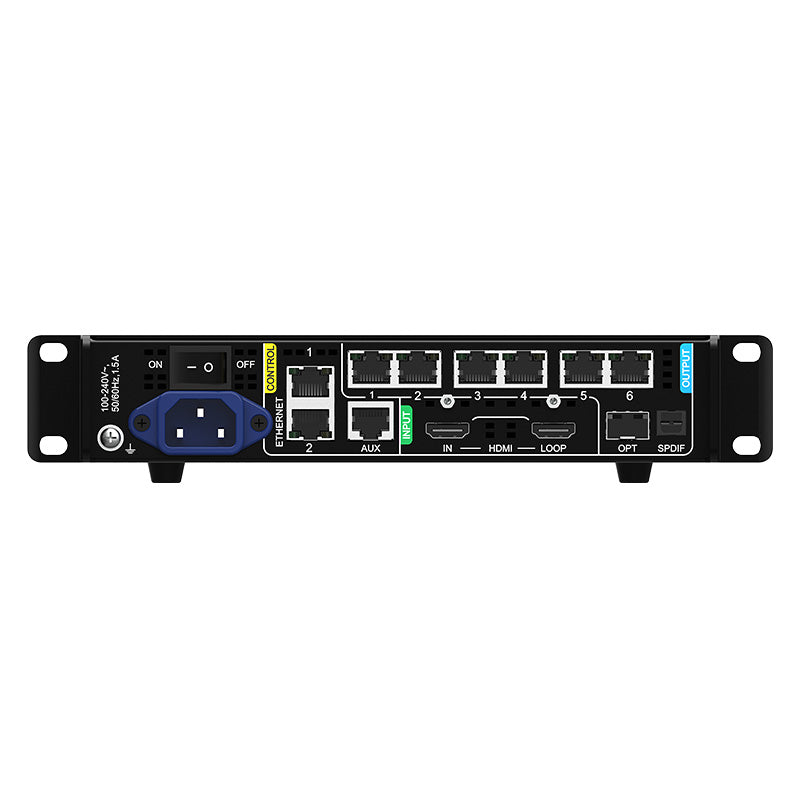

Hardware features:

Inputs:

• 1x HDMI 1.3 (max. 1920×1200@60Hz; min. 800×600@60Hz)
  • Custom EDID's: max. width: 3840 (3840×600@60Hz); max. height: 2560 (800×2560@60Hz)

Outputs:

• 6x LED-Out (RJ45):
  • 8Bit@60Hz: 650,000 pixels
  • 10Bit@60Hz: 325,000 pixels (Only in combination with A10s Pro Receiving card)
• 1x HDMI 1.3 Loop
• 1x OPT-Out (10G)
• 1x SPDIF (reserved)

further features:

• Grayscale calibration
• Pixel level brightness & chroma calibration
• low latency
• integrated network switch for cascading multiple devices

general specifications:

• Supply voltage: 100-240V~, 50/60Hz
• Dimensions: 254.3 x 50.6 x 290.0 mm (WxDxH)
• Power consumption: 25Watt
• Weight: 2,1kg
