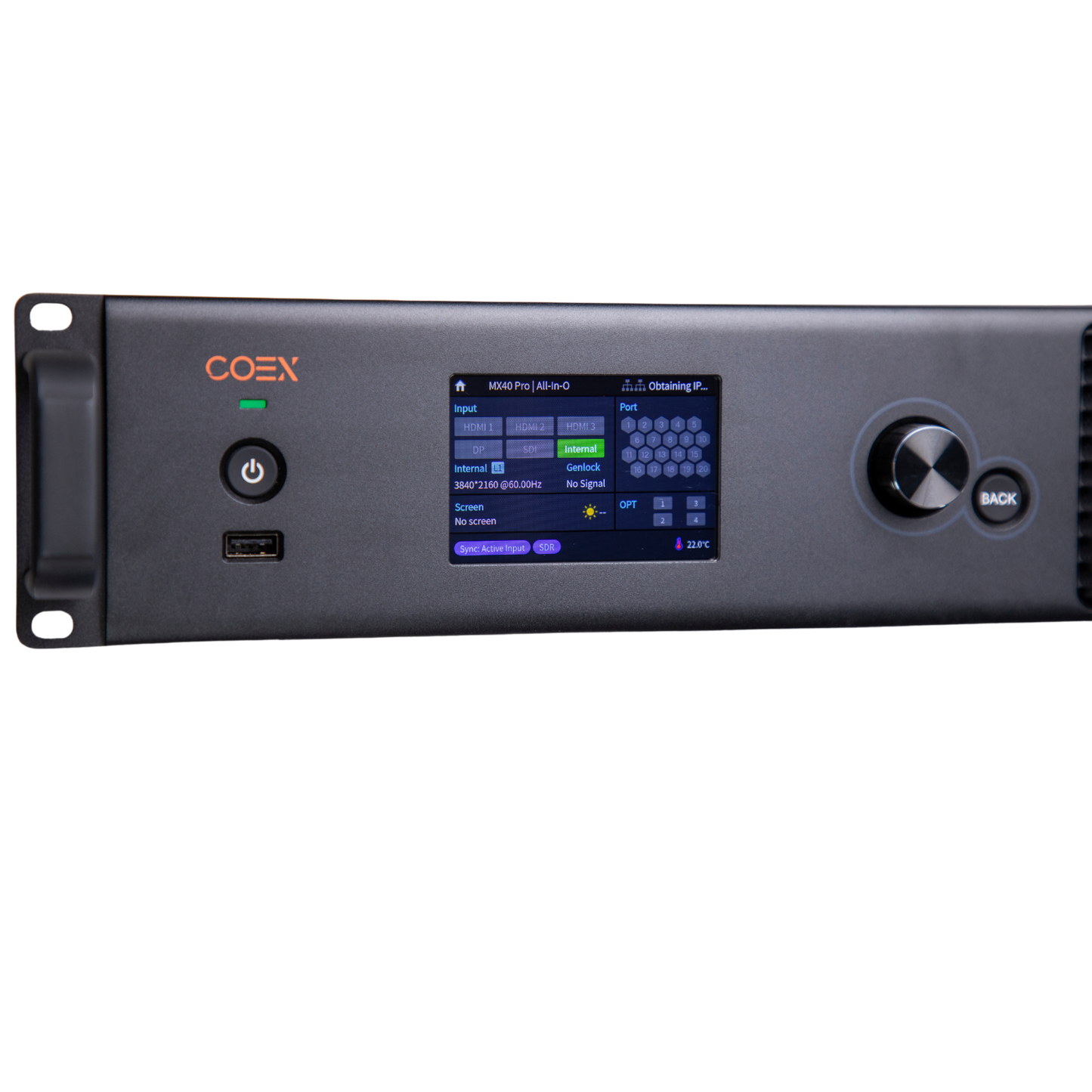

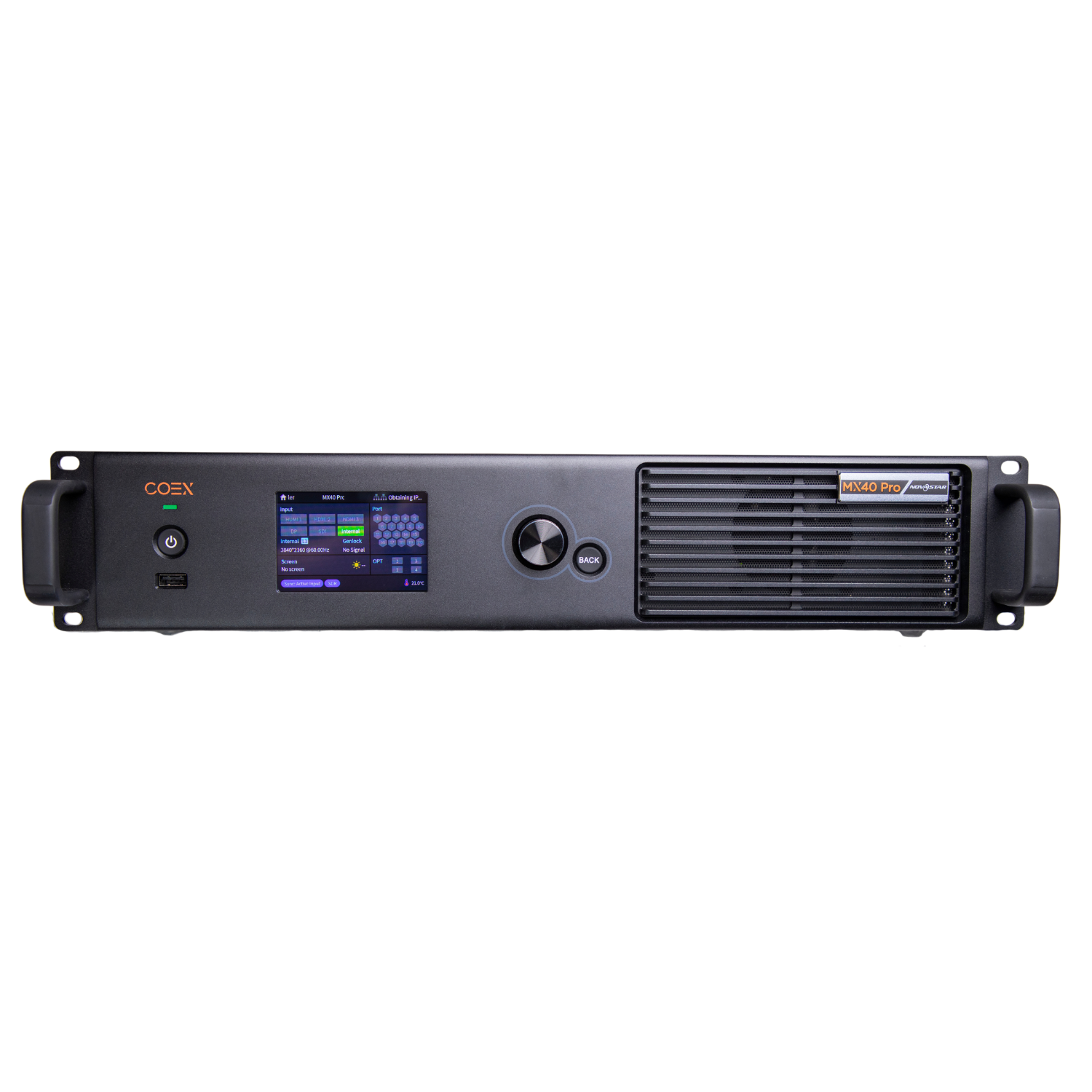

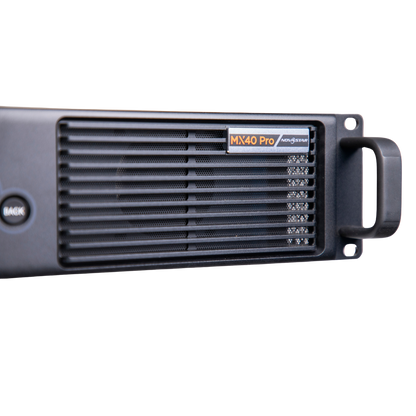

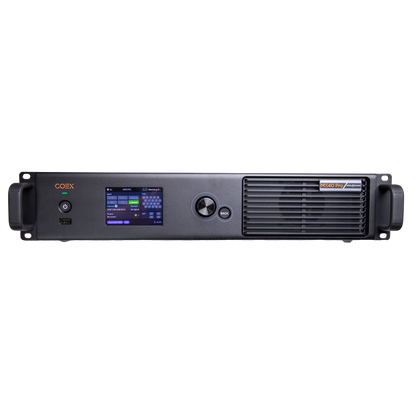

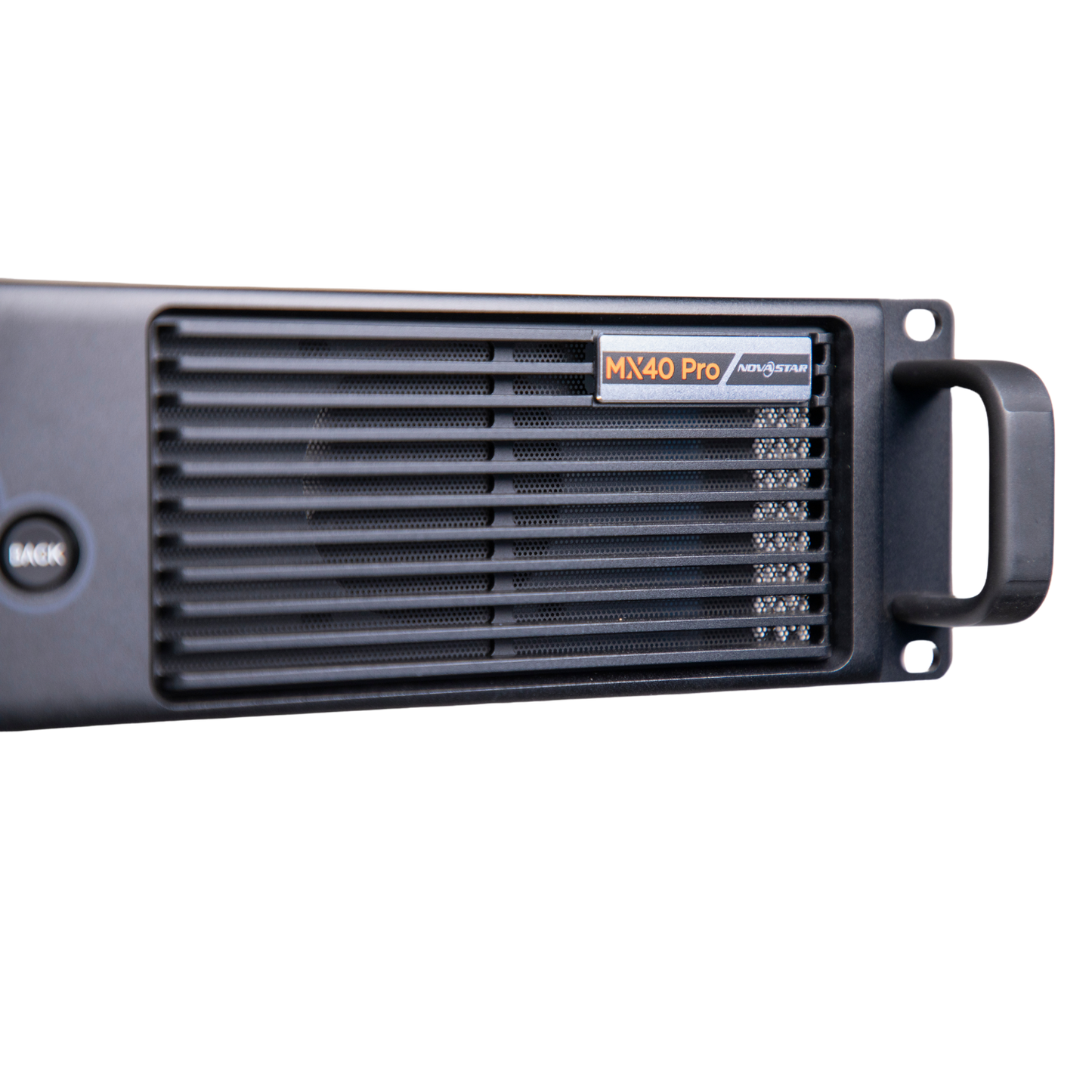

MX 40 PRO

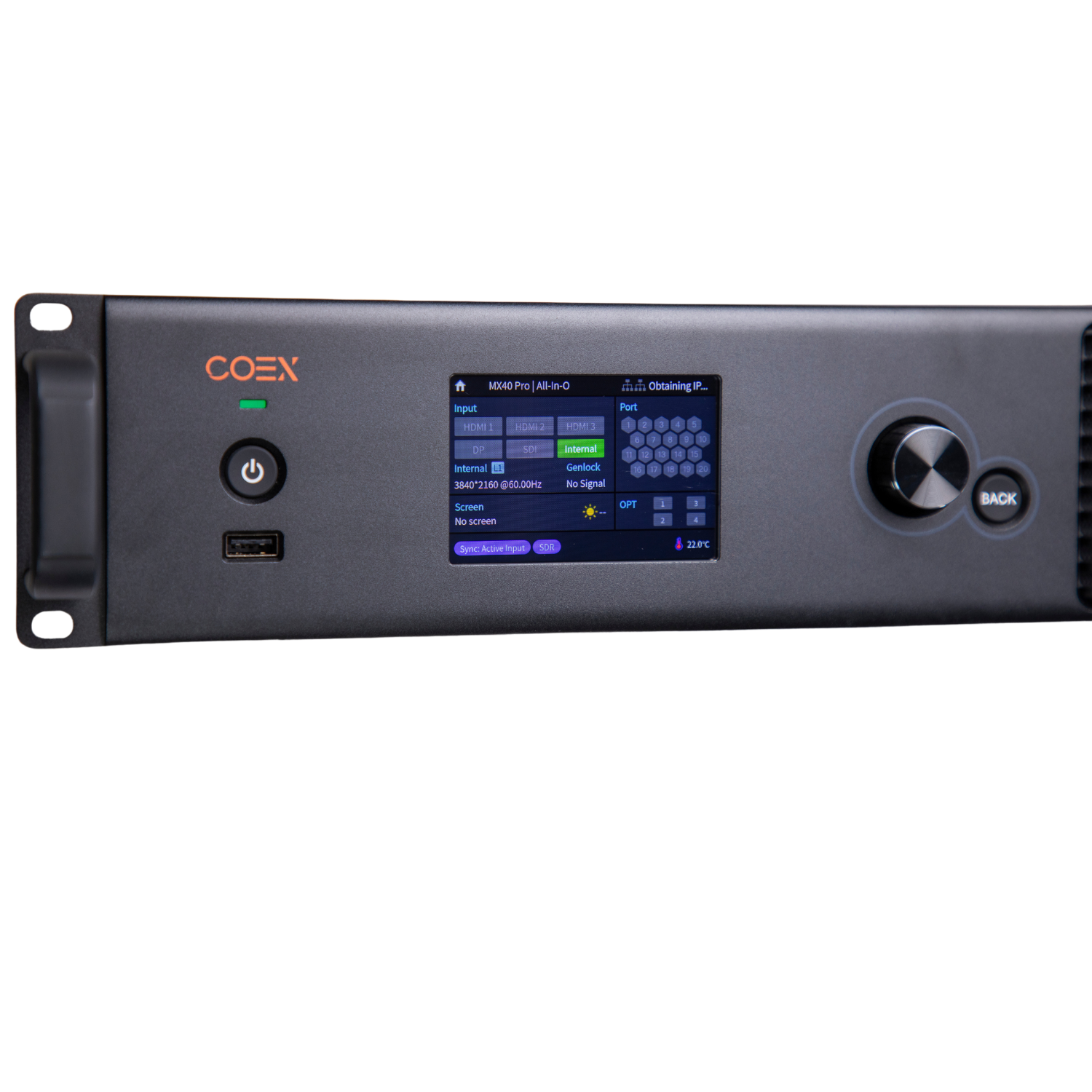

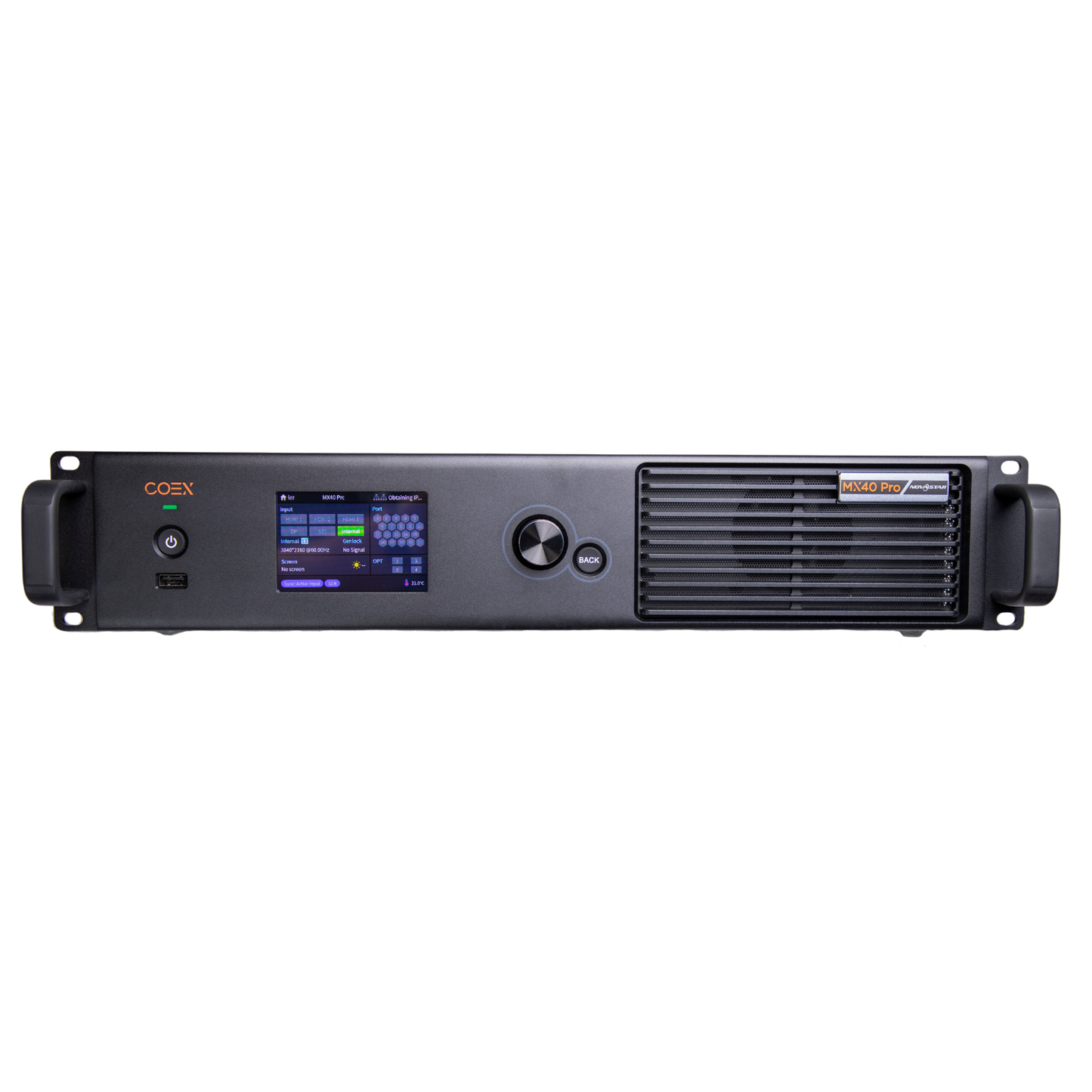

The MX40 Pro is NovaStar's latest flagship 4K LED controller from the COEX series. The device has numerous video inputs and a total of 20 LED outputs.

In conjunction with NovaStar's new VMP software (Vision Management Platform), the user is offered simple operation with extensive functions.

Hardware features:

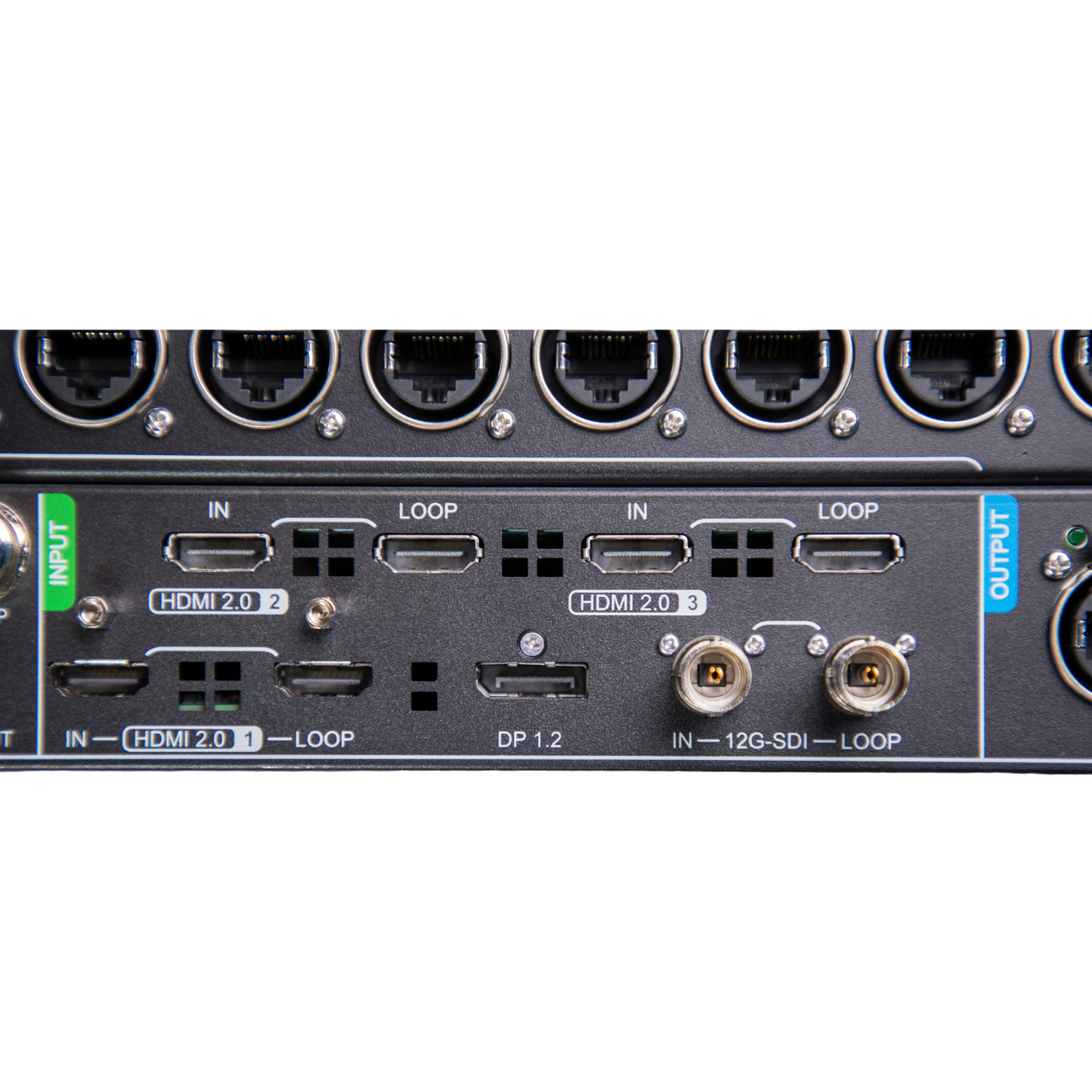

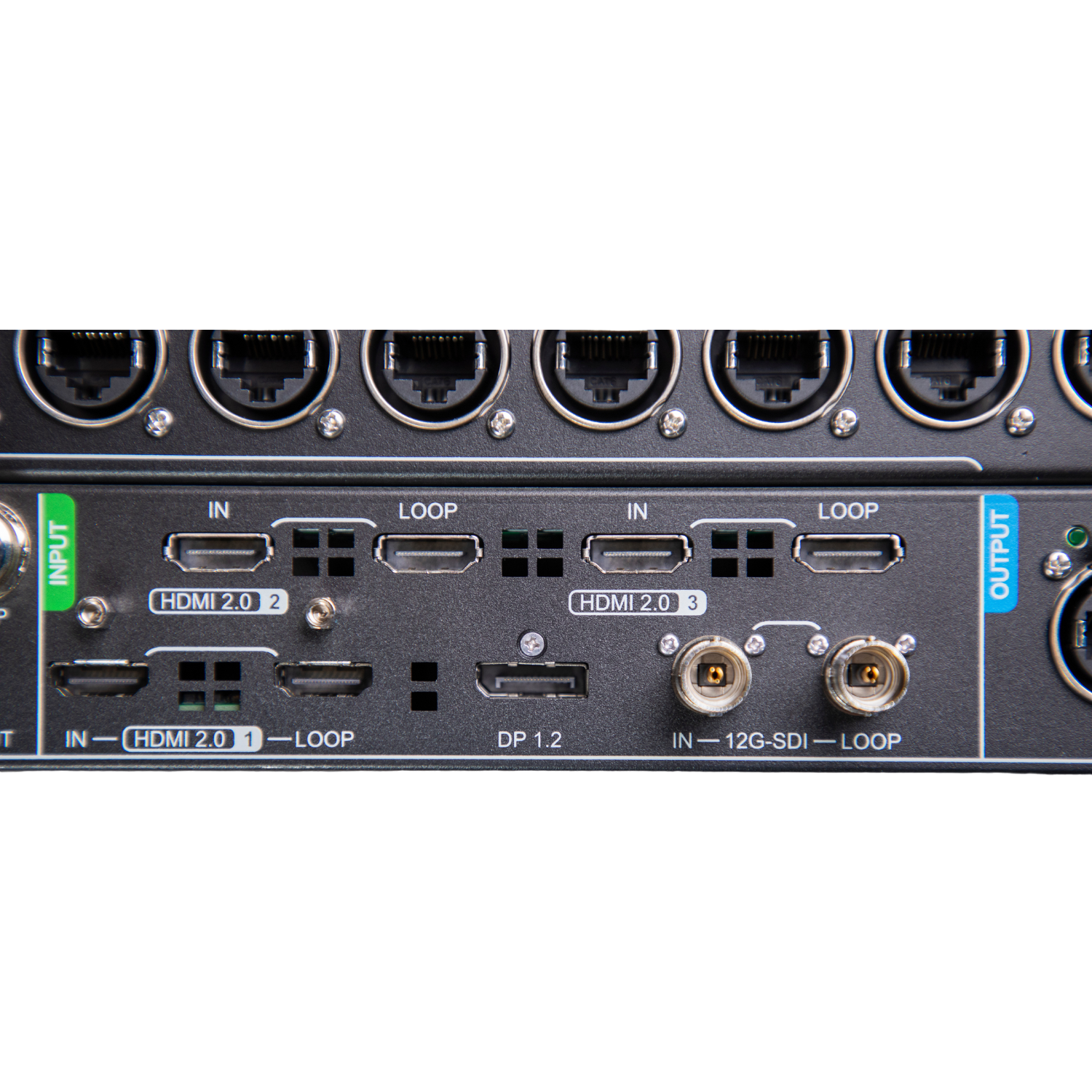

Inputs:

• 3x HDMI 2.0 (max. 4096×2160@60Hz or 8192×1080@60Hz)
• 1x DP 1.2 (max. 4096×2160@60Hz or 8192×1080@60Hz)
• 1x 12G-SDI (max. 4096×2160@60Hz), supports ST-2082, ST-2081, ST-424 & ST-292

Outputs:

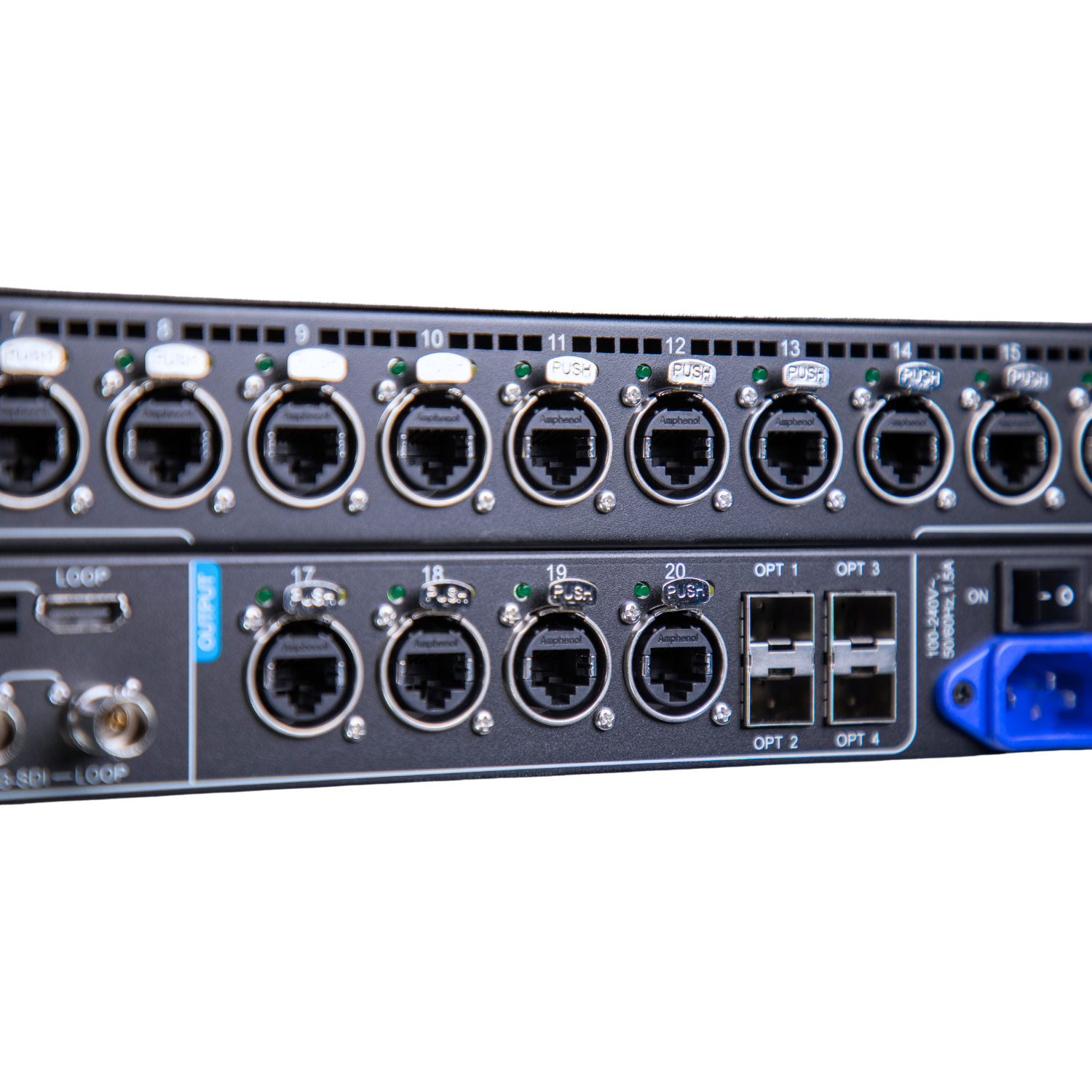

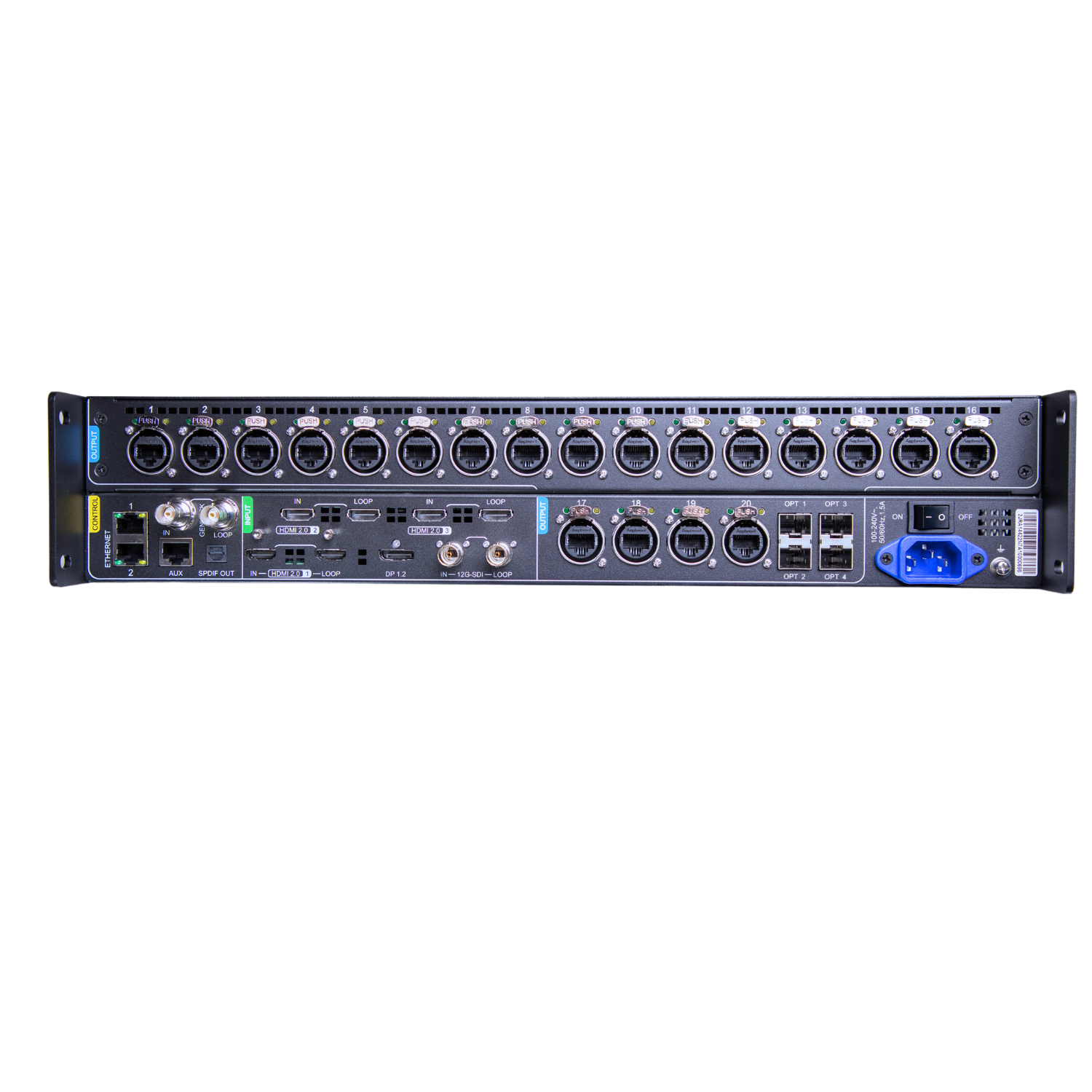

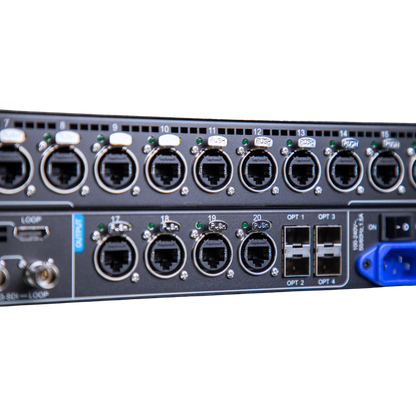

• 20x LED-Out (RJ45):
  • 8Bit@60Hz: 650,000 pixels
  • 10Bit@60Hz: 480.00 Pixel (Only in combination with A10s Pro Receiving card)
  • 10/12bit@60Hz: 325,000 pixels
• 3x HDMI 2.0 Loop
• 1x 12G-SDI Loop

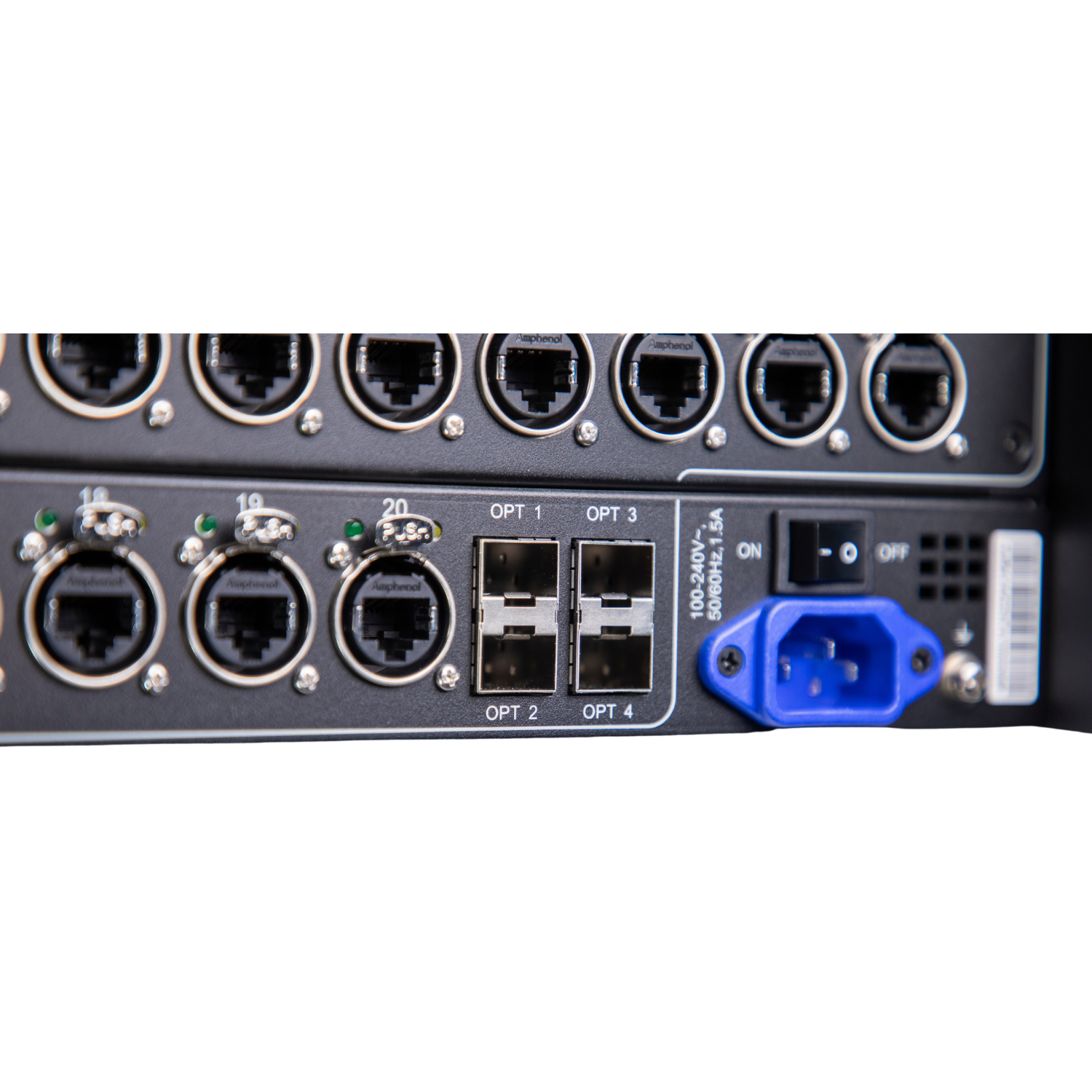

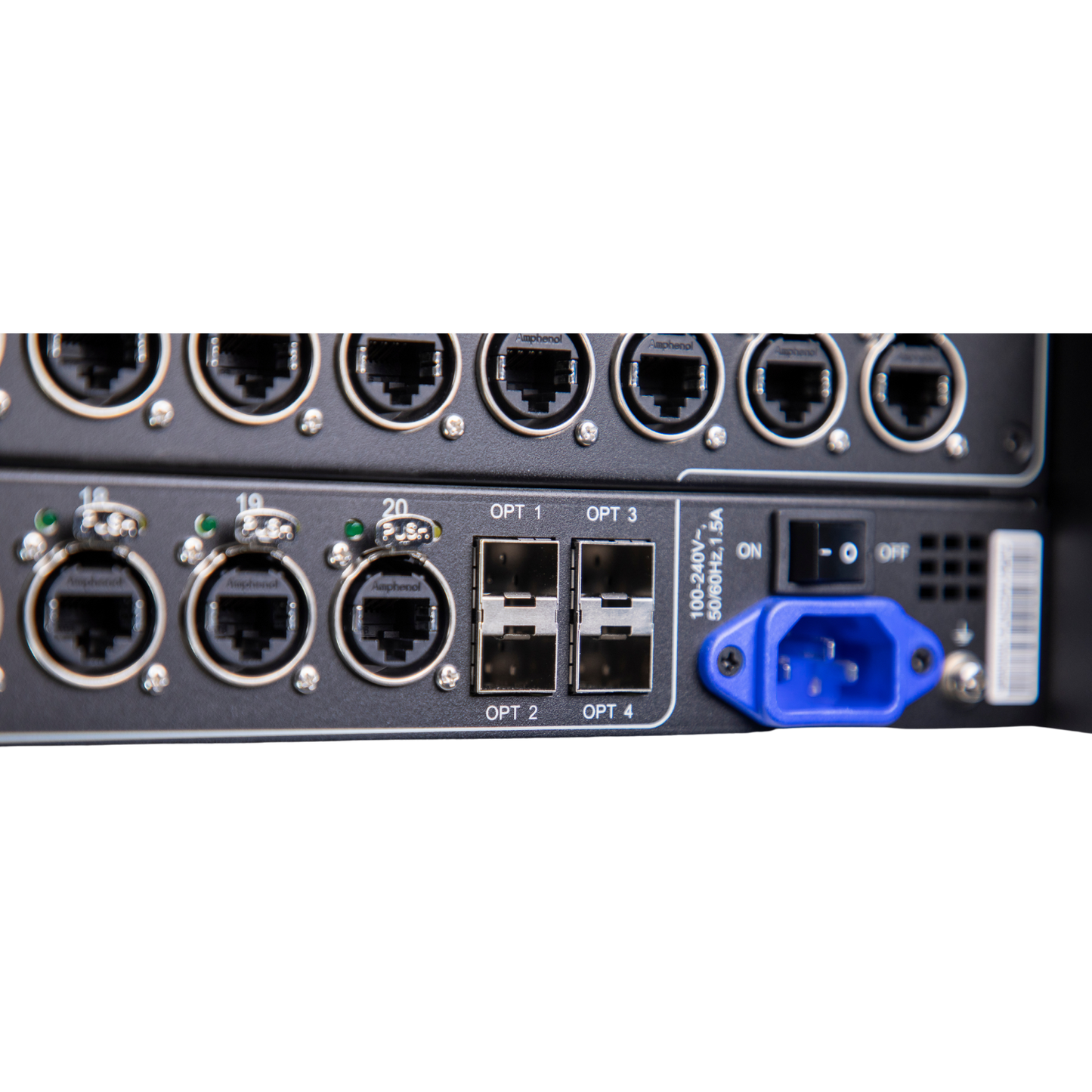

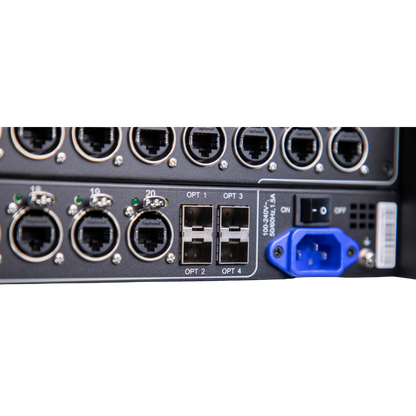

• 4x OPT-Out (10G)

further features:

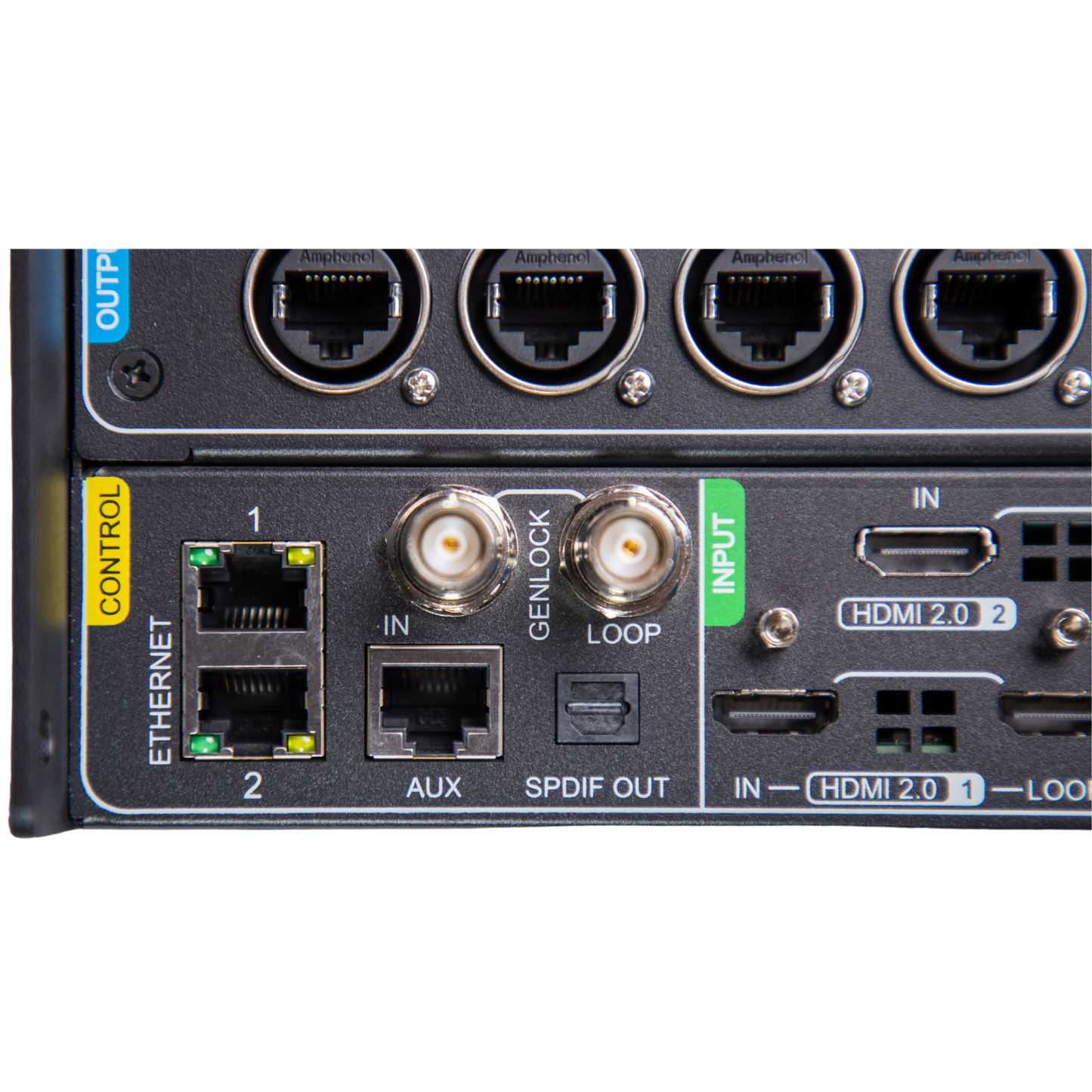

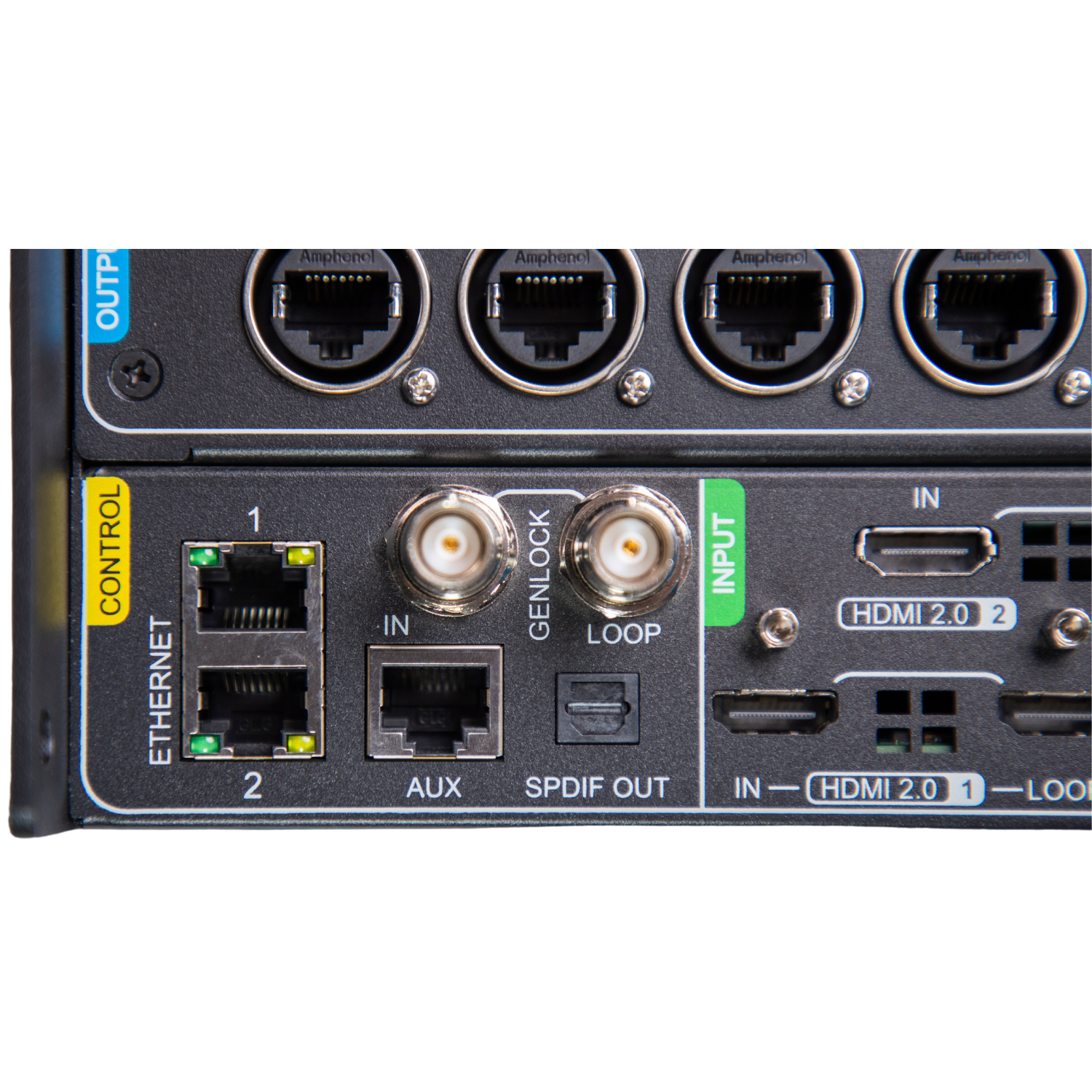

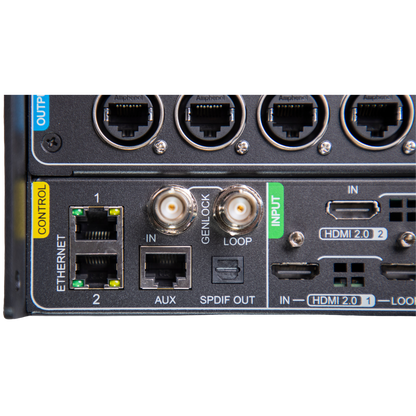

• Genlock
• Color Processing: Color Replacement, Color Correction, 3D LUTs, Color Curves
• Dynamic Booster
• Grayscale calibration
• Brightness & Chroma Calibration
• HDR10
• low latency
• 3D capable
• integrated network switch for cascading multiple devices

general specifications:

• Supply voltage: AC 100-240V, 50/60HZ
• Dimensions: 482.6 x 467.0 x 94.2mm (WxDxH)
• Power consumption: 70Watt
• Weight: 7.5kg
